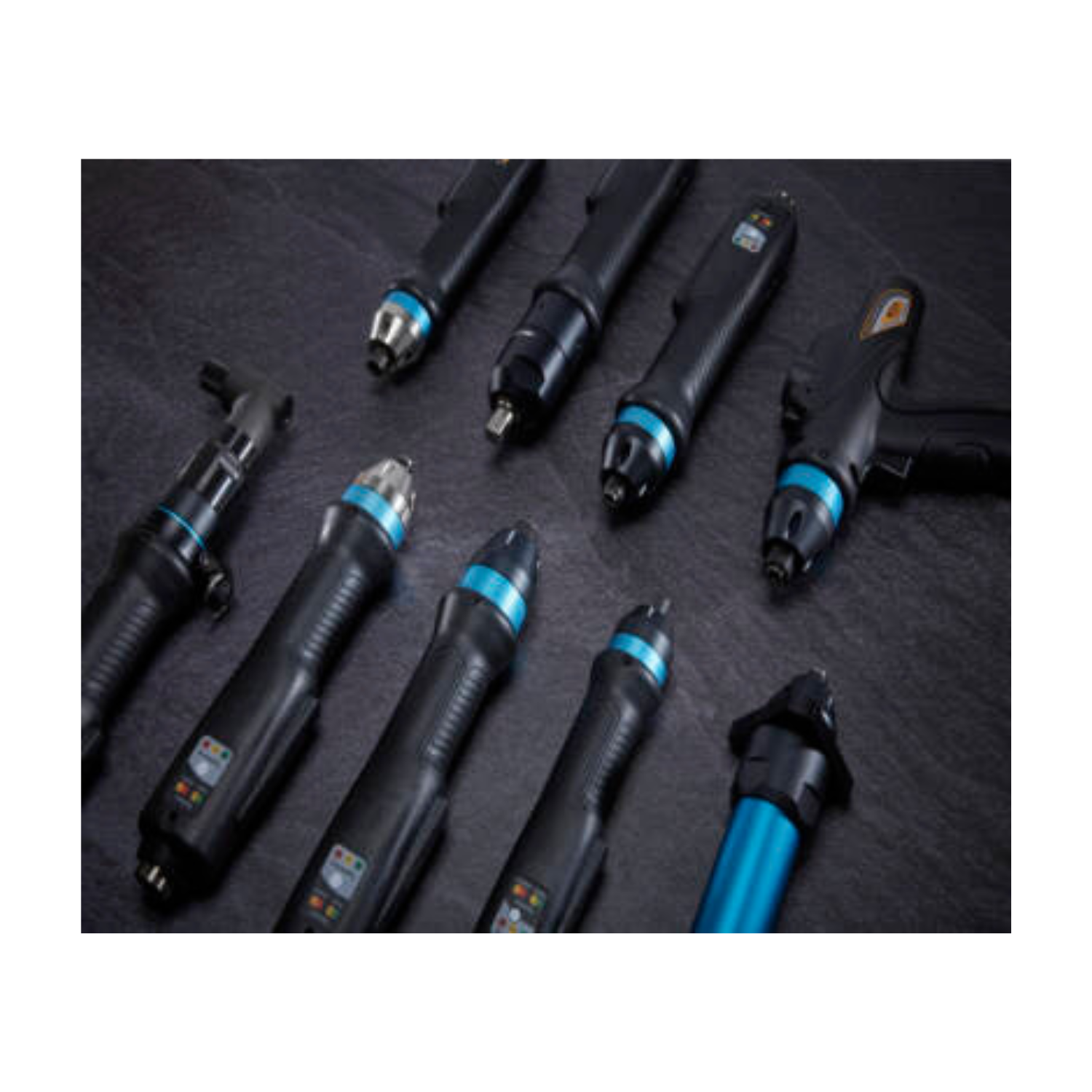

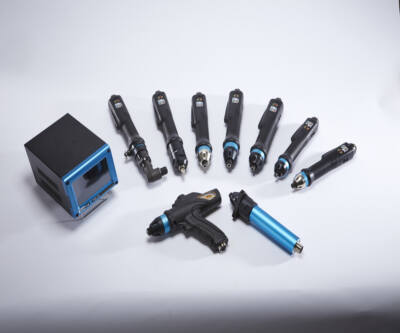

MD driver is a reliable robotic spindle system engineered for accurate and repeatable torque control.
MD driver is optimized for Manual line, MD driver can see the effects of improving productivity and reducing labor fatigue level.
MD Accessories provide automated functions to prevent workers from making mistakes.
PC or PLC can control torque, speed and tightening results monitoring by communication.

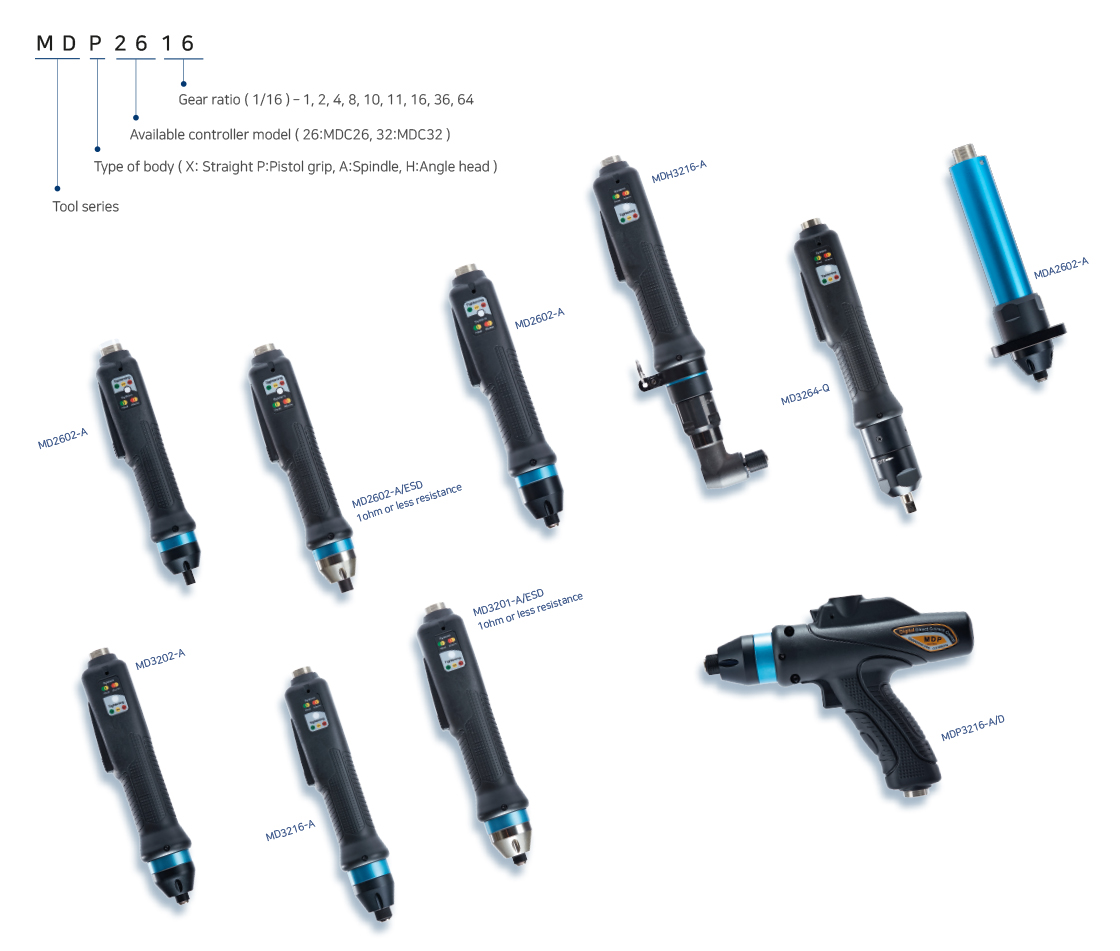

Driver list

Model Driver type Torque (Kfg.cm) RPM Drive Size Controller
MD2201  Lever Start / Push-to-Start 0.1 ~ 0.7 150 ~ 2000  Dia Φ4 half moon MDC-22
MD2203  Lever Start / Push-to-Start 0.4 ~ 2 50 ~ 1800  Dia Φ4 half moon
MD2205  Lever Start / Push-to-Start 0.5 ~ 2.8 50 ~ 1500  Dia Φ4 half moon
MD2208  Lever Start / Push-to-Start 0.9 ~ 4.5 50 ~ 950  Hex 1/4” or Dia Φ4
MD2213  Lever Start / Push-to-Start 1.5 ~ 7 50 ~ 750  Hex 1/4” or Dia Φ4
 MD2601  Lever Start / Push-to-Start  0.3 ~ 4 150 ~ 2000  Hex 1/4” or Dia Φ4 MDC-26 V2
 MD2602  Lever Start / Push-to-Start  0.5 ~ 7 150 ~ 2000  Hex 1/4” or Dia Φ4
MD2604  Lever Start / Push-to-Start  2 ~ 14 100 ~ 1500  Hex 1/4”
 MD2611  Lever Start / Push-to-Start  4 ~ 34 100 ~ 900  Hex 1/4”
MD2616  Lever Start / Push-to-Start  5 ~ 50 100 ~ 620  Hex 1/4”
MD3201  Lever Start / Push-to-Start  1 ~ 12 150 ~ 2000  Hex 1/4” MDC-32 V2
MD3202  Lever Start / Push-to-Start  2 ~ 20 100 ~ 2000  Hex 1/4”
 MD3204  Lever Start / Push-to-Start  4 ~ 40 100 ~ 1500  Hex 1/4”
 MD3208  Lever Start / Push-to-Start  7 ~ 75 50 ~ 900  Hex 1/4”
MD3211  Lever Start / Push-to-Start  10 ~ 90 50 ~ 690  Hex 1/4”
 MD3216  Lever Start / Push-to-Start  20 ~ 140 50 ~ 470  Hex 1/4”
 MD3236  Lever Start  40 ~ 280 50 ~ 210  SQ 3/8"
 MD3264  Lever Start  80 ~ 500 50 ~ 115  SQ 1/2"



Accessories

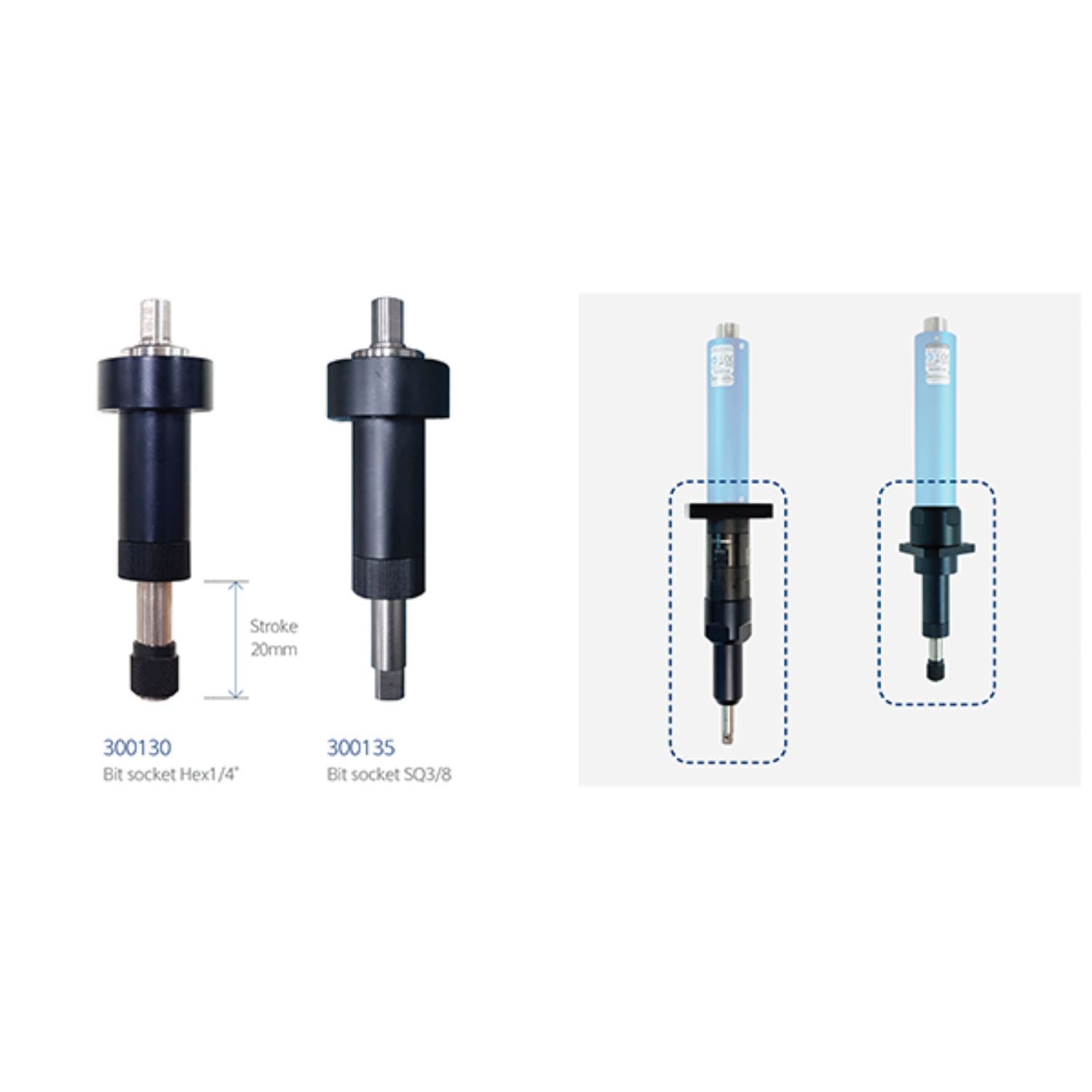

[Telescopic Bit Cushion (TBC)]

 Model  Torque(kfg.cm) RPM Drive size
 MDA3204-A/TBC  4 ~ 40  1500 Hex1/4"
MDA3211-A/TBC  10 ~ 90  690 Hex1/4"
 MDA3216-A/TBC  20 ~ 140  470 Hex1/4"
 MDA3204-Q/TBC  4 ~ 40  1500 SQ3/8"
MDA3211-Q/TBC  10 ~ 90  690 SQ3/8"
 MDA3216-Q/TBC  20 ~ 140  470 SQ3/8"
 MDA3236-Q/TBC  40 ~ 280  210 SQ3/8"
MDA3264-Q/TBC  80 ~ 500  115 SQ3/8"

[Vacuum pick-up Assy (VPA)]

Mouth-piece & sleeve are not included. They should be customized for screw and application details.

Item Code Bit Size   Screw Size  Available Tools
 #300056  Hex 1/4"  M20  MD26xx-A
 #300057  Hex 1/4"  M23  MD32xx-A
#300058  Dia 4mm  M20  MD26xx-E
